New Type CE Approved Commercial Price Peanut Butter Making Machine
The use of advanced technology professional production equipment combined with traditional stone sesame oil, sesame paste, peanut butter stone. Fine grinding stone with sesame oil, long life advantages. Sesame oil stone mechanical transmission part adopts ,long life and other advantages of stainless steel base as a whole package, beautiful, safe, and sanitary. Sesame, peanut butter taste pure, grind sesame oil is rich in nutritional value, promote appetite, help digestion, contains large amounts of unsaturated fatty acids, vitamin E, minerals, etc., can reduce the accumulation of body fat.
New type CE approved commercial price peanut butter making machine

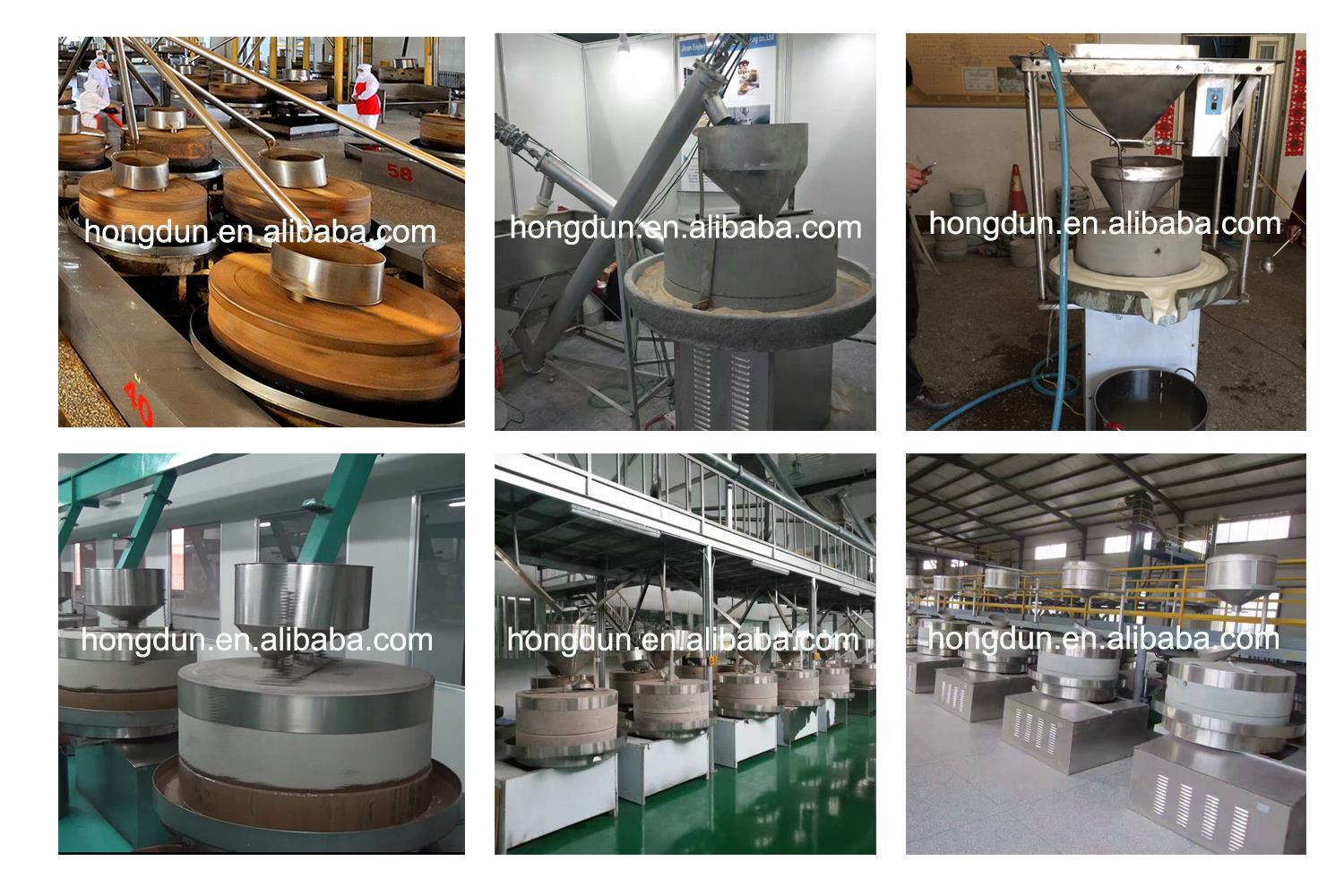

The complete set of peanut butter production line has high mechanization, good reliability, fully enclosed production, and can process high-quality stable and smooth peanut butter, granular peanut butter and ordinary peanut butter, as well as stable and ordinary sesame butter.
Working Principle of New type CE approved commercial price peanut butter making machine
The upper hole of the grinding disc chisel on the machine is engaged with the lower plate, fixed on a frame seat, and has a short vertical shaft in the middle of the lower fan, which is made of iron, and a corresponding empty sleeve is arranged in the middle of the upper fan, and the two fans are combined.
The fan is fixed and the upper fan can be rotated in the opposite direction around the axis. At the same time, there is an empty chamber on the contact surface of the two fans, which is called "grinding chamber". The outer circumference of the bore also has the grinding teeth, and the upper grinding still has a grinding eye.
When it is grinding, the nut flows through the eye to the grinding chamber, evenly distributed around it, and is grinding into sauce and flowing from the seam to the grinding disc.
 |  |
Product Parameter for New Type CE Approved Commercial Price Peanut Butter Making Machine
stone diameter(cm) | upper stone thickness(cm) | bottom stone thickness(cm) | voltage(v) | power(kw) | capacity(kg/h) |
45 | 15 | 13 | 220 | 1.1 | 5 |
50 | 15 | 13 | 220 | 1.1 | 10 |
60 | 20 | 18 | 220 | 1.5 | 20 |
70 | 22 | 20 | 220/380 | 2.2 | 30 |
80 | 24 | 22 | 380 | 2.2 | 50 |
100 | 32 | 28 | 380 | 5.5 | 110 |
100cm two sets group model | 32 | 28 | 380 | 17.2 | 220 |
100cm four sets group model | 32 | 28 | 380 | 32.2 | 440 |
Customized production line | 32 | 28 | 380 | customized | customized |
1.We use natural sand stone,no harm no radiation to health and rich in minerals.the stone wearing resisted,it can work 24 hours continuously,and stone guarantee time five years.and the stone can be used at least 30 years.
2.we have been in stone mill business nearly 40 years.and has been exported for 8 years
3.The whole machine is stainless steel except the bottom frame and the bottom frame is covered by stainless steel.The stainless steel thickness 2mm.
4.Last and most important,we use latest type reducer,durable.
Jinan enying machinery co.,ltd is a big group company which manages many factory affiliated.located in zhangqiu city, shandong province China.we mainly focus on manufacture and export : Food processing machinery ,like tahini stone mill, roti /tortilla/chapati production line Our products are widely recognized and trusted by clients.
Packing
Different machines,the pagckage will be different,We support wooden box package,If big machine or production line,it will be loaded in the container directly.
Delivery
Around 15 days after receive the payment.we support delivery by ship. We can aslo deliver the machine to your agent in china if you have.
