Maize Flour Machine

flour mill machine can grind many kind grains such as wheat, corn , rice, maize, millet, oats, sorghum, buckwheat, barley,spice ,herbs , tea and others into flour

Send Inquiry

Download

Description

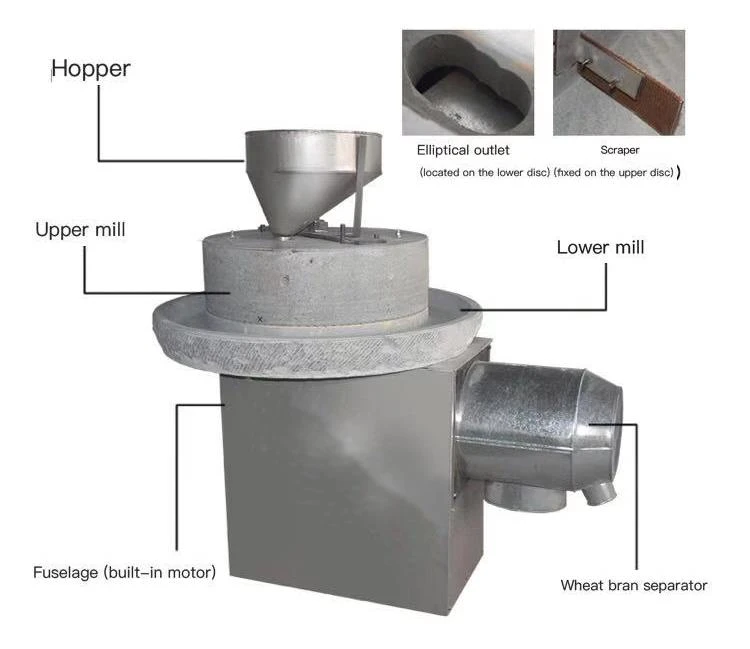

Maize flour machine

Product description

It can process wheat, corn, rice , maize, beans, millet, oats,buckwheat, herb, tea ,sorghum, dry chilli/pepper the advantage of flour stone mill is low rotating speed,only 19-25 rpm/min, so low temperature ,so the flour nutrition and taste such as protein, carotin, VB etc can be kept well . the flour will be more gluten and no need to add any additives.

For the single model , the flour fineness is 80-100 mesh, if the production line , it can reach 120 mesh

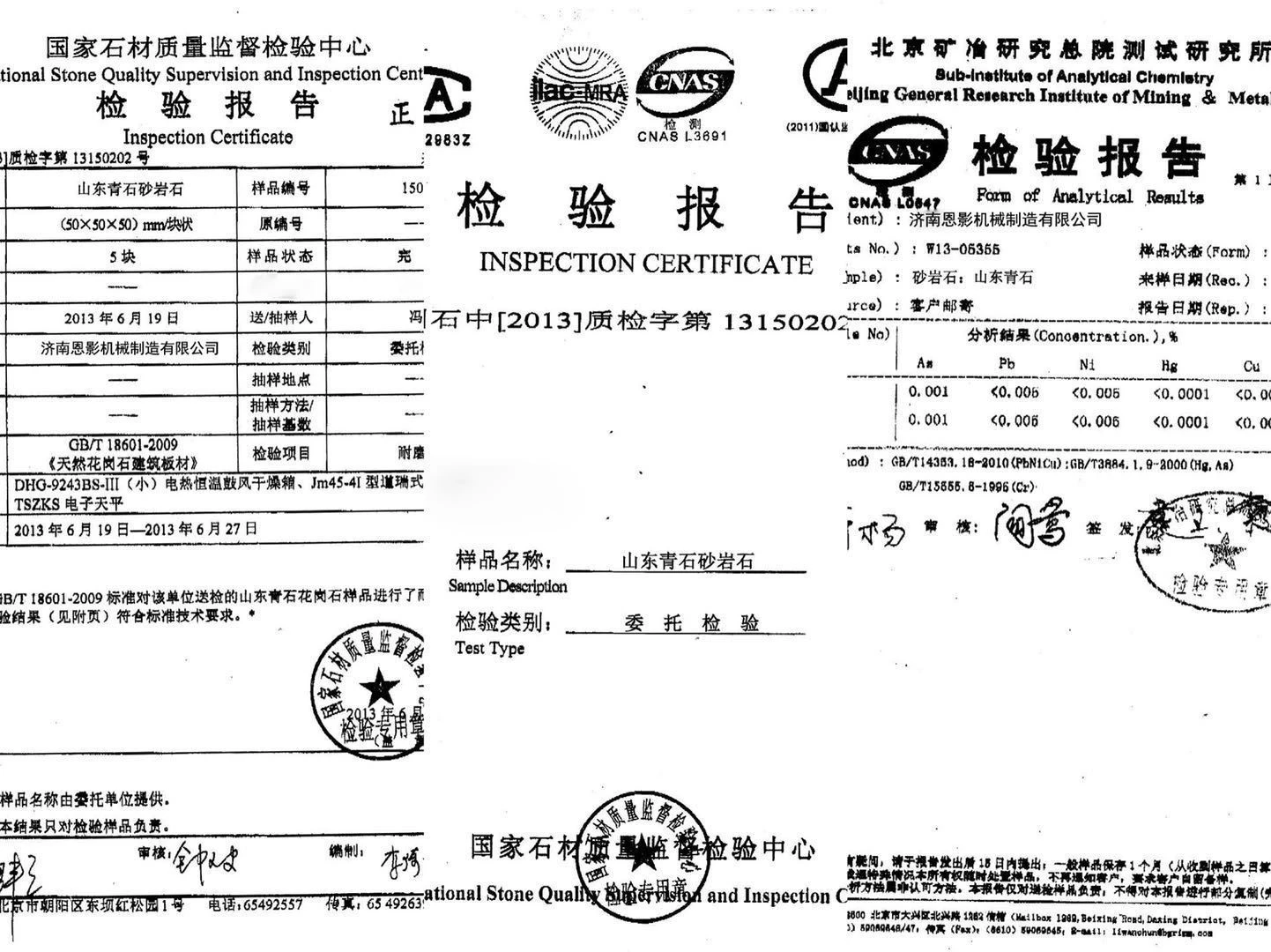

the stone wearing resisted ,it can work 24 hours continuously,the stone no radition, no harm to health and rich in minerals(we have stone test report ),the stone from other suppliers can not meet.we use latest type reducer and good quality,there are vertical reducer and horizontal reducer . all parts of machine materials which contact food are stainless steel(bearing stainless steel), the tray thickness we use is 2.5mm, the hopper thickness is 1.5mm. And one side of the frame can be open, so you can check the motor and reducer at any time.my machine cross arm is stainless steel and covered by stainless steel(thickness 0.6mm).each model has different intermediate shaft, very durable.we have been in stone mill business nearly 40 years,the earliest factory for stone mill and now we are the biggest stone mill factory in china.

201806051549242614387

Operation video

Product parameter

stone diameter（CM）	capacity（KG/H)	power（kw）	voltage（V)	Weight(kg)	Upper/lower disc thickness
60	20	1.5+0.75	220	350	18/16
70	30	1.5+0.75	380	400	20/18
80	40	2.2+0.75	380	800	24/22
100	60	5.5+0.75	380	2000	24/22
automatic single model 100cm	75	6	380		24/22
