Flour Grinding Machine

Flour Grinding Machine

flour milling machine can grind wheat, corn, sorghum, beans, rice, oats, buckwheat, herbs, pepper, hot pepper and other crops into powder.the advantage is low rotating speed,only 19-25 rpm/min, so low temperature ,so the flour nutrition and taste such as protein, carotin, VB etc can be kept well .

Send InquiryChat Now
Product Details

Flour grinding machine

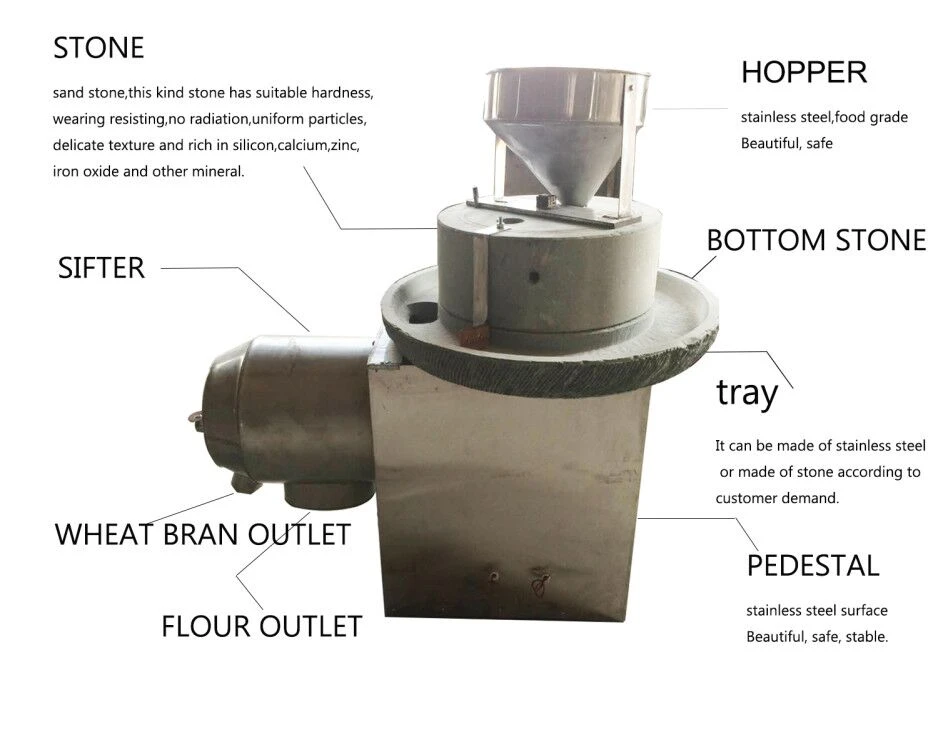

    about the stone mill

our machine material is sand stone and all parts contact food are stainless steel and we use latest type reducer and good quality.

the  sand stone,this kind stone has suitable hardness,wearing resisting,no radiation,uniform particles,delicate texture and rich in silicon,calcium,zinc,iron oxide and other mineral.

the tray thickness we use is 2.0mm, the hopper thickness is 2.0mm. And one side of the frame can be open, so you can check the motor and reducer at any time.my machine cross arm is stainless steel and covered by stainless steel

inside2


inside1


IMG_1869


mill2



C94DF1BBB6106099CE7180987DDFD21D

C94DF1BBB6106099CE7180987DDFD21D


  about the machie and product


It can process wheat, corn, rice , maize, beans, millet, oats,buckwheat, herb, tea ,sorghum, dry chilli/pepper

For the single model , the flour fineness is 80-100 mesh,  if the production line , it can reach 120 mesh

It is better to spray some water in the raw material, and keep it for several hours , then mill them.such as wheat, 20 kg wheat need to spray 1 kg water, the wheat will be easy to grind and can get more flour

 the advantage of flour stone mill is low rotating speed,only 19-25 rpm/min, so low temperature ,so the flour nutrition and taste such as protein, carotin, VB etc can be kept well . the flour will be more gluten and no need to add any additives.

The guarantee time is one year, if there is problem in the first year and not human reason, we will provide the parts for free, after one year, we will charge for the spare parts

we have flour factory, we use the stone mill to produce flour, so we can provide the technological guidance and welcome to my factory  to check.we have semi-automatic model, automatic model and production line, we can recommend you the suitable model according your requirement.

The so-called stone mill flour, is processed with traditional stone mill, do not add any additives of flour, belongs to the natural health flour.When the stone mill grinds the wheat, its rotational speed is slow, produces the heat energy to be low, the protein has not matured, cannot destroy in the wheat the nutrition ingredient.Stone mill flour benefits: wheat carbohydrates, calcium, phosphorus, iron, vitamins B1, B2 and other nutrients are retained, and easy to absorb.In particular, vitamin E is 21 times more than regular flour.It is the only high-grade gift of flour series. It can be used for diabetes, hypertension, hyperlipidemia and postoperative patients.

Stone mill flour and ordinary mill, in many ways have its unique advantages.From the processing technology point of view, the ordinary mill flour mill used by the speed of operation, processing temperature is high, some like protein, heat sensitive vitamins and other nutrients have a great impact;In contrast, the traditional stone mill used by the ruixiang stone mill has the excellent characteristics of low speed and low temperature, reducing the loss of nutrients, but also can retain the unique flavor of wheat.





FAQ



17777








IMG_1895


                  parameters

stone diameter

voltage

power

capacity

rotation speed)

60cm

220v/380v

1.5kw+0.75kw

20kg

19-25 rpm/min

70cm

380v

1.5kw+0.75

30kg

19-25 rpm/min

80cm

380v

2.2kw+0.75

40kg

19-25 rpm/min

90cm

380v

3kw+0.75

50kg

19-25 rpm/min

automatic single model 90cm

380v

6kw

60kg

19-25 rpm/min

100cm

380v

5.5kw+0.75kw

60kg

19-25 rpm/min

automatic single model 100cm

380v

8.5kw

75kg

19-25 rpm/min

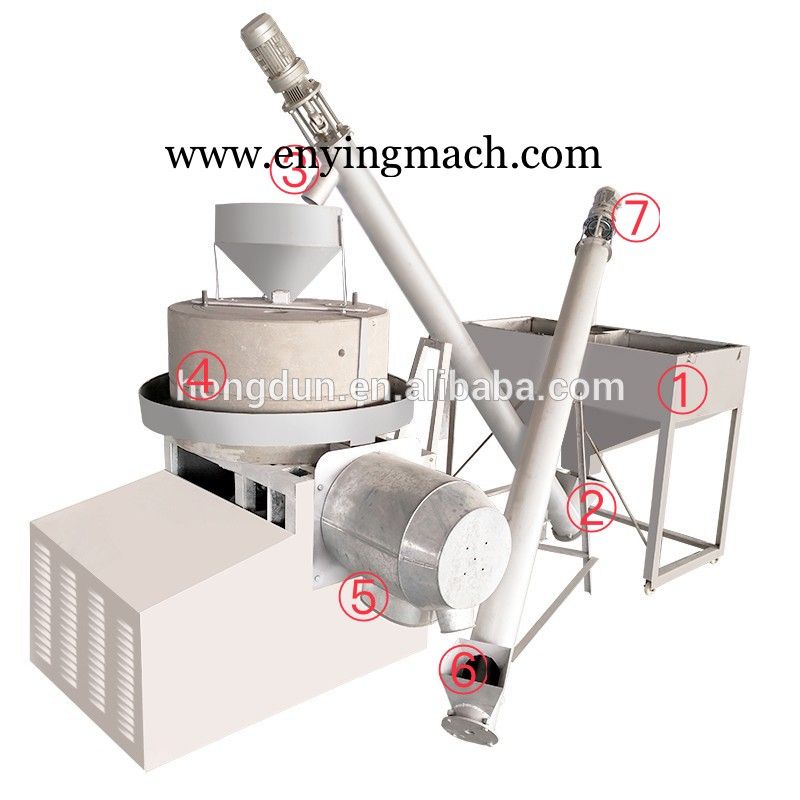

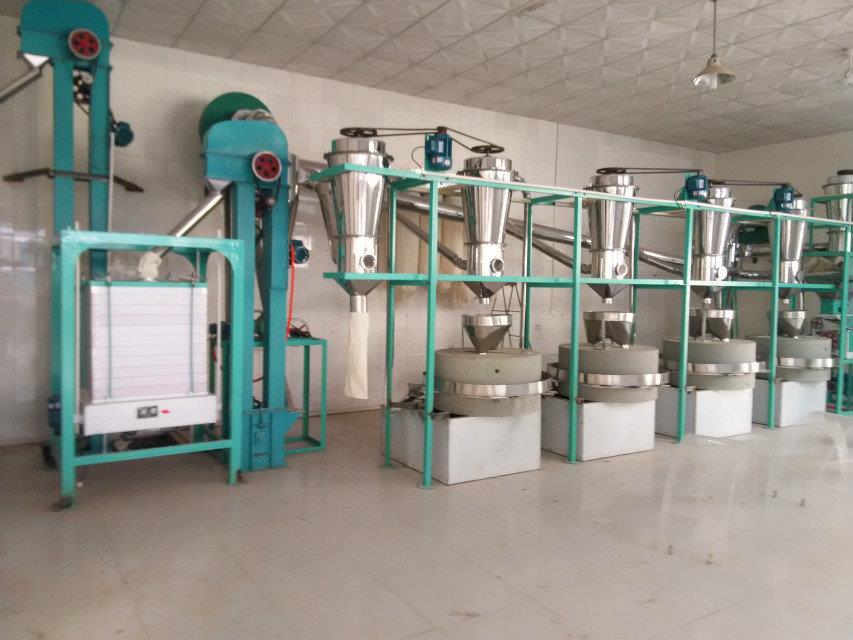

Flour production line

Customized according client requirement



       detailed  image
























    our sevice



1.Electric stone milling  machine

 2.Natural sandstone and stainless steel

 3main parts:stone mill ,motor and reducer

 4.process :sesameseeds,peanuts ,almond,walnut,pine nuts  etc

 5. Low working speed, low milling temperature,so nutrients are well kept

 6.Fully automatic: one person to operate a machine with automatic feeding

 7.working life :20-30 years



Download

CE stone mill.pdf
